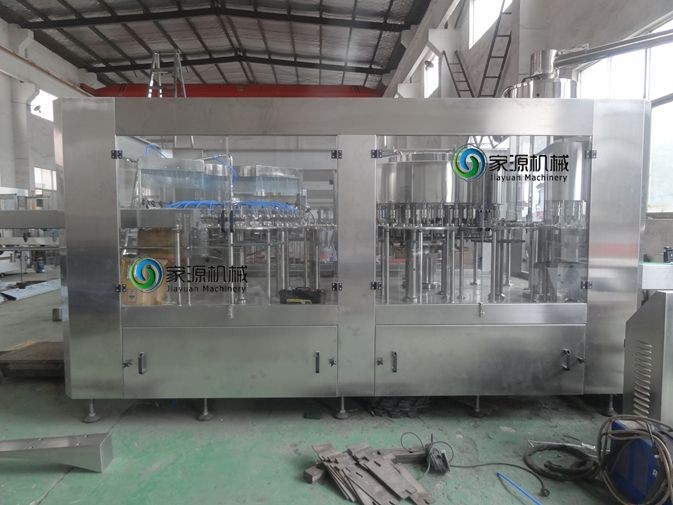

CGF40-40-12 Water Bottle Filling Machine Stainless Steel Material 16000BPH -18000BPH

Zhangjiagang Jiayuan Machinery Co.,Ltd.
Contact Now

CGF40-40-12 Water Bottle Filling Machine Stainless Steel Material 16000BPH -18000BPH

Brand Name : jiayuan

Model Number : CGF

Certification : CE,SGS

Place of Origin : CHINA,MAINLAND

MOQ : 1 set

Price : USD 12000-90000 SET

Payment Terms : T/T

Supply Ability : 15 sets per month

Delivery Time : 30work days

Packaging Details : wooden case

service : oversea service

filling type : normal pressure filling

warranty : 1year free

application : food, beverage

control system : PCL control

certification : CE,SGS

Contact Now

CGF40-40-12 Water Bottle Filling Machine Stainless Steel Material 16000BPH -18000BPH

Introduction

JIAYUAN CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. JIAYUAN CGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.

CGF40-40-12 Water Bottle Filling Machine Stainless Steel Material 16000BPH -18000BPH

Feature

  • The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
  • Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
  • Spring type rinsing catcher can wash both inside and outside of the bottle
  • High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
  • Magnetic powered cap device ensures tightness and prevents damage of the caps
  • Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
  • Built-in safeguard mechanism ensures the safety of operator and machine.
  • High efficient air clean filter system ensures high sanitary requirements
  • Low overall machine noise
  • Self-lubricating system imported from America provides continuous smooth operation

Technical Parameter

CGF16-12-6 CGF18-18-6 CGF32-32-10
Productivity 2000-4000 BPH 4000-6000 BPH 12000-15000 BPH
Rinsing Head 16 18 32
Liquid Filling Head 12 18 32
Capping Head 6 6 10
Bottle Volume 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml
Bottle Diameter φ50-90 mm φ50-90 mm φ50-90 mm
Bottle Height 150-310 mm 150-310 mm 150-310 mm
Filling Tolerance ±2% ±2% ±2%
Cap Size 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps
Air Pressure 0.5 MPa 0.5 MPa 0.5 MPa
Air Consumption 500 L/min 500 L/min 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 7.5 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2.5 m3/h
Motor Power 3.5kW 3.5kW 7.5kW
Voltage 380V 380V 380V
Dimension (L×W×H) 2640×1520×2340mm (L×W×H) 2816×1883×2340mm (L×W×H) 3937×2846×2560mm
Weight 2500kg 3000kg 8000kg
Filling Principle Gravity Filling Gravity Filling Gravity Filling

Rinsing part

1) The rotary wheel is a fully AISI304 stainless steel welded structure.

2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

Filling part

1) The filler is designed and manufactured with application of Italy technology, providing

hardware guarantee for securing product quality and reducing loss.

2) Rotary wheel are fully made of stainless steel AISI304.

3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

Capping part

1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

Features of bottle filling machine/line/equipments:

(1) This series beverage filling line,packaging line,production line production line collected washing, filling, capping, labeling and packing machines together.

(2) it is suitable for kinds of beverage production, like juice, tea production, simultaneously only change some spare part, then it can be used in the pure water, mineral water production line.

(3)adopts advanced normal pressure gravity for filling, the filling effect are fast, steady, quasi and equipped with the material recirculating system, realize back flow independently, not contract with material and avoiding second pollution and oxidation.

(4)This equipment can satisfy with filing request of lower than 95 hot filling, filling valves and pipes material are according to sanitation standard, at the same time.

(5)The CIP self-cleaning interface there is RO water rinsing device before capping ensure bottle mouth is clean. We adopt magnetic torque capping head.
