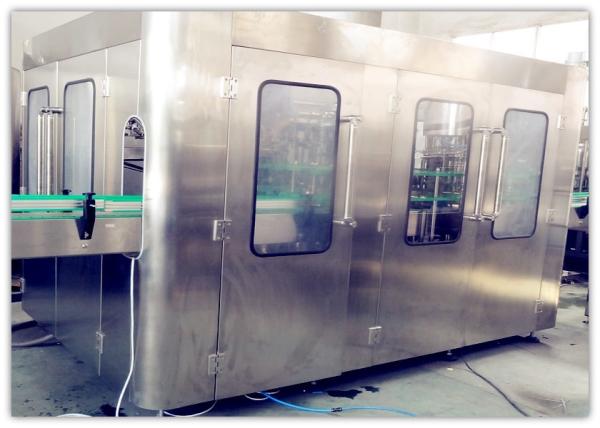

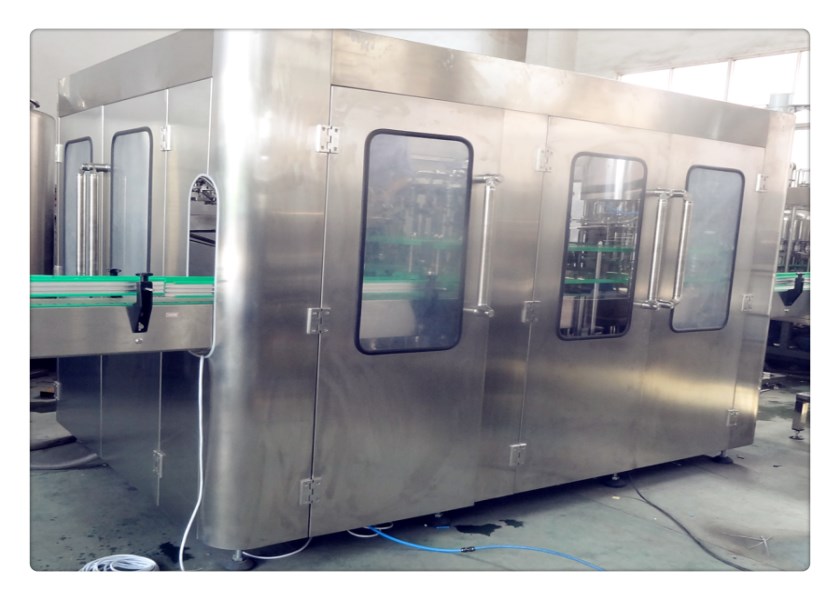

800kg/h Drinking water filling equipment 2000-4000BPH Capacity
Introduction
This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ
Foreign advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment reaches the international advanced level.
Feature
- The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
- Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
- Spring type rinsing catcher can wash both inside and outside of the bottle
- High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
- Magnetic powered cap device ensures tightness and prevents damage of the caps
- Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
- Self-lubricating system imported from America provides continuous smooth operation
Parameter
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MMLiquid Level | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | bottle diameter40-80; | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) |
| Height | height:130-280 | (Height):150-320 | (Height):150-320 | (Height):150-320 |
| Suitable cap shape | Plastic Screw Cap | (Plastic Screw Cap) | Plastic Screw Cap) | (Plastic Screw Cap) |
| Water pressure of washing bottle(MPa) | 0.18 | 0.18 | 0.18 | 0.18 |
| Water consumption for water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | normal pressure | normal pressure | normal pressure |
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3500×2200×2250 |
Our Services
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
