Mineral Water, RO Water, Spring Water Washing Filling And
Capping Machine CGF18-18-6 Price
Parameter
| Model | CGF18-18-6 |
| Max capacity | 6000bph (500ml PET bottle) |
| Bottle size | 250-2000ml |
| Bottle Height | 150-320mm |
| Bottle Diameter | 40-108mm |
| Suitable cap | Plastic screw cap |
| Cap size | 28-38mm |
| Filling Tenperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 5.03KW |
| Dimension | 2450*1800*2300mm |
| Weight | 4000kg |
Description
This machine is our most popular model, it is a rising filling caping monoblock,
has 18 rising heads 18 filling heads and 6 capping heads, can produce water
5000-6000 bottles per hour, suitable for producing non-carbonated beverage,
like mineral water, purified water, sring water, vitamin water, juice, tea and other
non-gas liquid.
Details

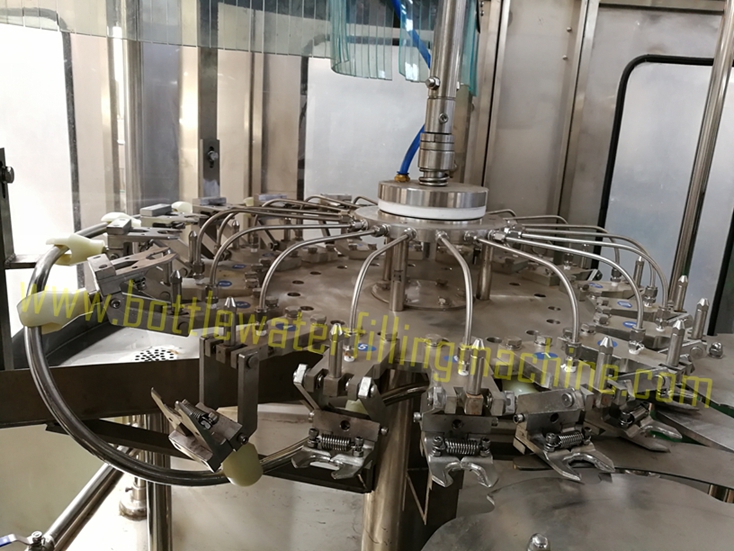

rising
1) The rotary disk is fully made of SUS304 stainless steel
2) Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3) Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
4) Bottle clamp and lifting mechanism of sliding sleeve adopts Germany IGUS corrosion resistant bearing without maintenance
5) Washing part moves by a frame in the transmission system through the gear transmission.

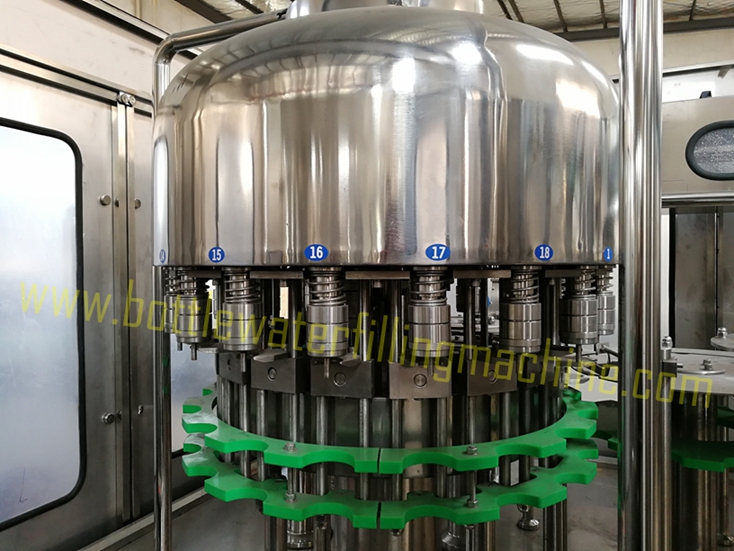

filling
1) The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2) The rotating disk is all made of SUS304 stainless.
3) Filling method is Pressure filling.
4) Filling valve manufactured by SUS304.
5) The filling valve structure design is reasonable, the filling quantity is accurate

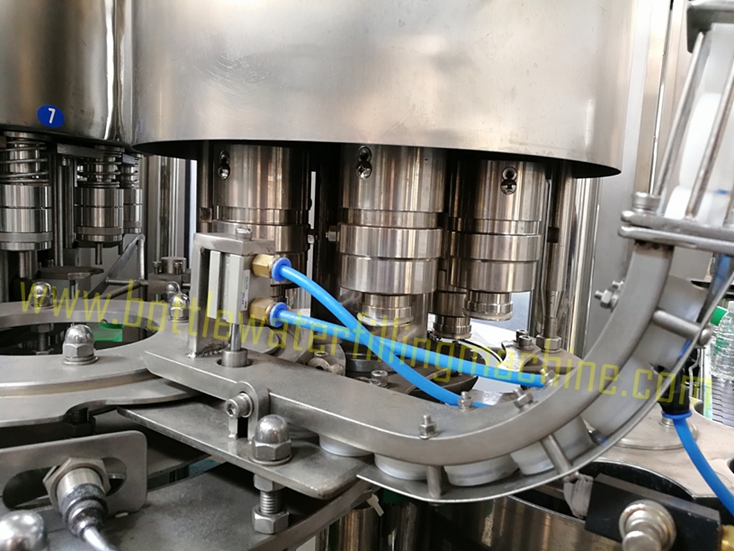

capping
The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product. Cooperated with mechanical design and automation technology of professors from university mechanical engineering institute, the capping parts are designed based on Italian AROL capping technology.
Besides this CGF18-18-6, we also have other capacity
| Model | CGFB16-16-12-6 | CGFB18-18-18-6 | CGFB24-24-24-8 | CGFB32-32-32-10 | CGFB40-40-40-12 | CGFB50-50-50-15 |
| Number of sterilizing heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 20000BPH | 24000BPH |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
| Overall size L*W*H(mm) | 3050*2000*2400 | 3170*2070*2400 | 4070*2350*2400 | 5100*2600*2400 | 6250*3050*2400 | 7500*3900*2400 |
If you want to get your precise quotation, pls leave your capacity, thanks... ...
