SUS304 Silvery White making machine orange juice industry with 4000bph production capacity
Application:

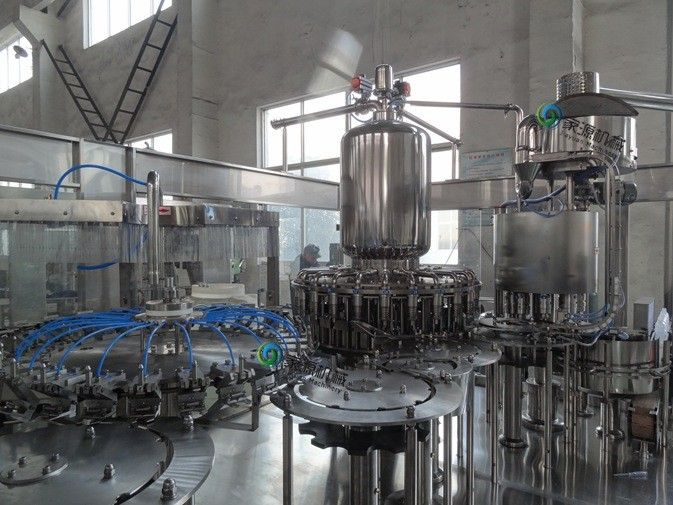

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, and capping, It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.
Parameter
| Model | RCGF24-24-8 |
| Production capacity(500ml)(b/h) | 10000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Feedback consumption | ≤10% |
| Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 |
| Suitable cap shape | (Plastic Screw Cap) |
| Water pressure of washing bottle(Mpa) | 0.18 |
| Wash pressure of washing bottle(kg/h) | 2500 |
| Gas sourse pressure(Mpa) | 0.6 |
| Gas consumption(m3/min | 0.4 |
| Total power | 7.68 |
| Total weight | 4000 |
| Dimensions(L*W*H)(mm) | 2750×2180×2200 |
Description
The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.
It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.

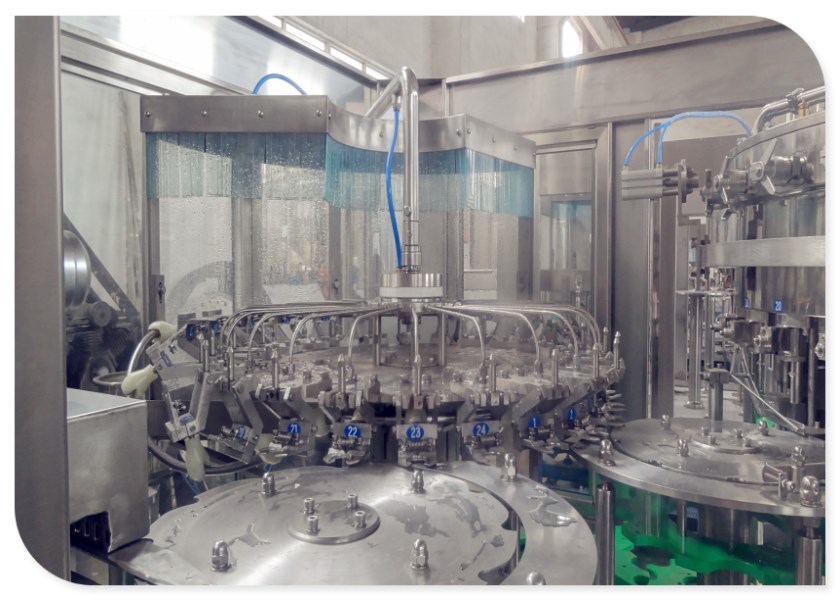

Washing part
a) Rotary pan is made of stainless steel 304.
b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

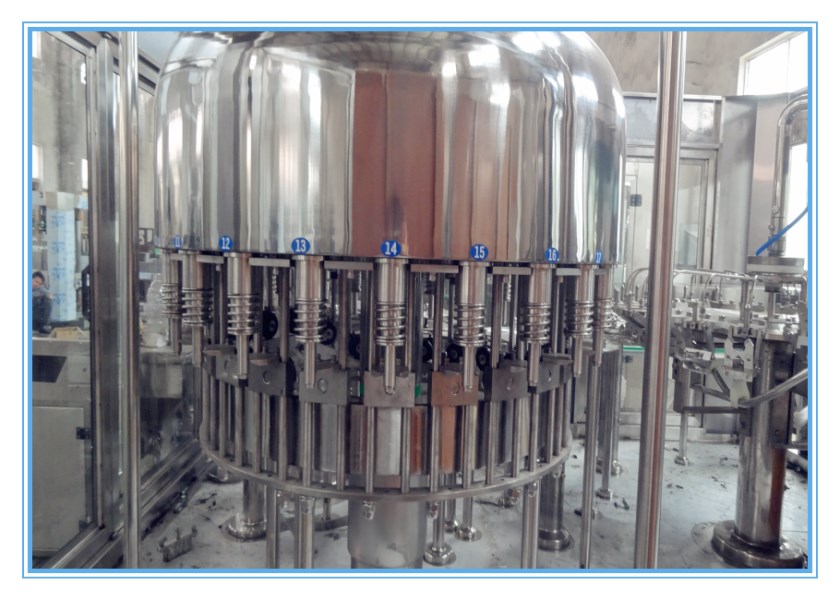

Filling part
a) Rotary pan is made of stainless steel 304
b) The way of filling is gravitation filling.
c) The filling valve is adopted best stainless steel 304
d) The structure of filling valve is reasonable, the amount is correct
e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle
Capping part
a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can
stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.
b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.
Features
(1) This series beverage filling line,packaging line,production line production line collected washing, filling, capping, labeling and packing machines together.
(2) it is suitable for kinds of beverage production, like juice, tea production, simultaneously only change some spare part, then it can be used in the pure water, mineral water production line.
(3)adopts advanced normal pressure gravity for filling, the filling effect are fast, steady, quasi and equipped with the material recirculating system, realize back flow independently, not contract with material and avoiding second pollution and oxidation.
(4)This equipment can satisfy with filing request of lower than 95 hot filling, filling valves and pipes material are according to sanitation standard, at the same time.
(5)The CIP self-cleaning interface there is RO water rinsing device before capping ensure bottle mouth is clean. We adopt magnetic torque capping head.
(6)Labeling machine is designed by our self with stainless steel frame.
(7)Hot shrink packing machine adopted original imported parts from Germany, Japan. It is easy to adjust for different size of bottle and package.
(8)The whole beverage filling line adopts human-machine interface, touch-screen, PLC computer controller and other advanced technologies. With automatic inspect system of filing temperature automatic, caps supplying material, high-temperature alarm, low-temperature shutdown and automatic return, no bottle, no filling, wait when lack of bottle, lacking caps shutdown and so on, realize no bottle, no filling.
