PET Bottle Juice Filling Machine, Small Scale Bottling Machine Packaging Machines
This machine is used to produce bottled juice, flavor water, drinking water, tea drink or other still beverage.
The available capacity is from 2000 bottles per hour to 30000BPH, the suitable bottle is from 250-2000ml,
only need to change some changeovers can use different bottle.

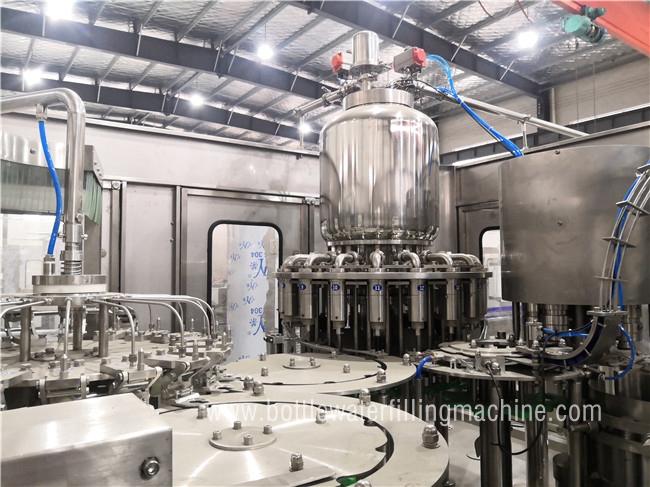

RCGF Series-----------the rinsing, filling, capping machine is automatically controlled by PLC. it has functions of bottle washing, juice filling and bottle capping. suitable bottle sizes are from 200ml to 2000ml.
1. The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
2. This 3-in-1 monobloc machine is for fruit juice, tea beverage, etc. Processing.
3. Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.
4. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height. Only arch board and star wheel such little nylon parts need to be changed.
5. The head of filling machine is made of better stainless steel, which is firm and endurable.
We can provide the complete line plants
Technical parameter
SPECIFICATIONS FOR JUICE FILLING MACHINE |
| Model(RFC-H) | 16-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 |
| Capacity(BPH) | 4000 | 8000 | 10000 | 12000 | 15000 |
| | Round and Square container Bottle diameter: 50-120mm Bottle Height: 160-320mm |
| Drive Motor(KW) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 |
| Water Consumption(T/H) | 1.5 | 1.5 | 2 | 2 | 3 |
| Compressed air Consumption(m³/min) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Dimension(L*W*H)mm | 2360*1770*2700 | 2760*2060*2700 | 2800*2230*2700 | 3550*2650*2700 | 4700*3320*2700 |
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
Product Tags:
|
|

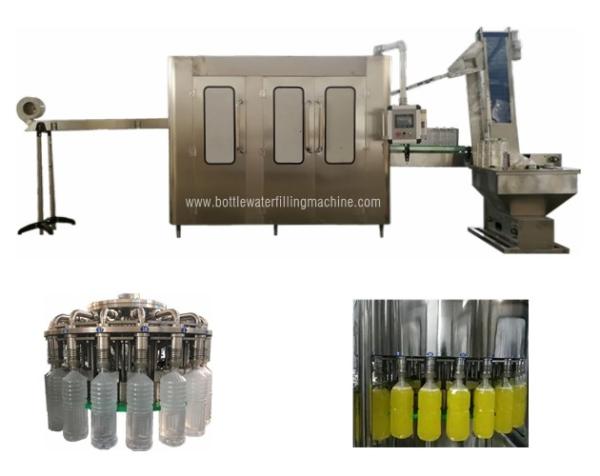

Monoblock SUS304 Soft Drink Rotary Liquid Filling Machine Images
|
