Pure Mineral Water Filling Machine

Name: Pure Mineral Water Filling Machine
Brand: JiaYuan
Price: 1 USD

Pure Mineral Water Filling Machine Manufactures

Brand Name : JiaYuan

Model Number : CGF40-40-12

Certification : CE, SGS

Place of Origin : JiangSu China

MOQ : 1 set

Price : USD 1- 58000 per set

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 30 days after confirmation of order

Packaging Details : This type of water filling machine would be wrapped up by plastic films. and covered up by extra padding like cartons and with lots of poly foams applied all around. and then put into a 3700*2400*2450 mm solid wooden case, Then the whole set would be suita

After Sale Service : Engineers available to service machinery overseas

Dimension : 3500*2200*2250 mm

Certificates : CE SGS

Weight : 7500kg

Brand : JiaYuan

Power : 8.7kw

Voltage : 220/380V

Driven Type : Electric

Automatic Grade : Automatic

Applicatiuon : Beverage

Packaging Material : Plastic

Packaging Type : Bottles

Capacity(500ml) : 17000BPH

Filling Material : Pure/Mineral water

Bottle Type : PET/Plastic bottle

Bottle Volume : 300ml-2500ml

Cap Type : Plastic screw cap

Warranty : One year

Machine Control : Siemens/Mitsubishi PLC system

Filling Method : Gravity Filling

Filling Type : Rinsing/Filling/Capping in one machine

Air Consumption : 0.6 m3/min

Matrial : 304/316 stainless welded frame

Contact Now

1. Briefs on product:

a. This type of machine is for pure/mineral water production.
b. The volume of bottle ranges from 295ml-2500ml. It matches plastic screw cap.
c. Key modules are from the elite companies(Siemens, Mitsubishi, etc).
d. The capacity is around 10000BPH with 500ml bottle.
e. Rotary system makes production efficient. Adjustable rotating speed determines the capacity.
f. Photoelectric sensor installed to make sure no bottle no fill, no bottle no capping.
g. Hygienic design for easy resource-saving sanitizing.

Having been proved by certificates like CE, SGS.

2. How does this pure/mineral water filling machine work:

a. Bottles are sent into the machine through air conveyor and all working parts of the machine start to rotate.
b. Starwheel inside the machine picks bottles up and sends them to the rinser. The rinser starts to wash the bottles.
c. The filler will get to work while rinser's done, The transportation is also conducted by a starwheel.
d. And then bottles will be sent to the capper by a starwheel, and capper starts to work.
e. At last, those filled and capped bottles will be sent out of the machine to the next stop.

Pure Mineral Water Filling Machine

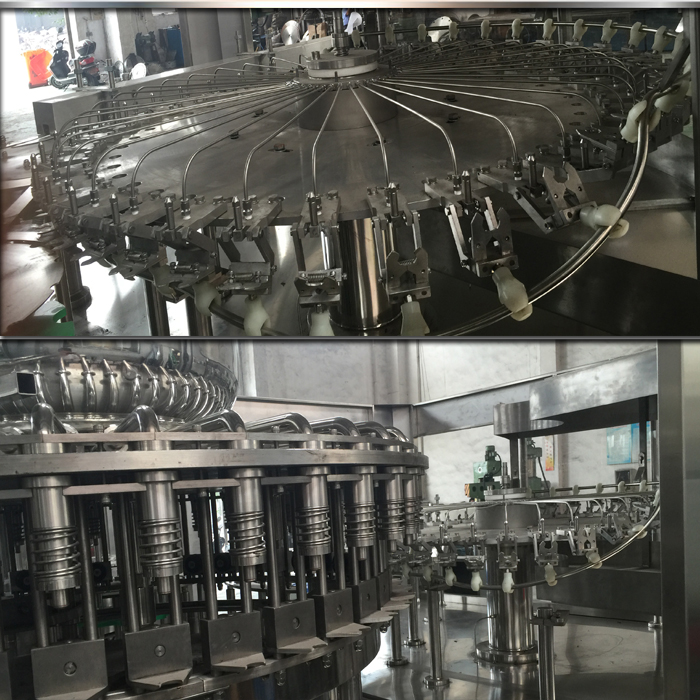

the rinser's clutches:

pick up bottles by clipping their necks and gradually turn them upside down while rotating.

They will send bottles into rinsing area where bottles get washed by water thoroughly.

the filler's nozzles:

They are made of finely preprocessed 316 stainless steel, The oval bulge that is right above each nozzle adjusts bottles into the right position before nozzles fill them up. The nozzle stroke can be adjusted to different bottles' volume. This whole combination just achieves highly accurate filling process.

heads of the capper:

The capping module is highly accurate. With the help of the photoelectic sensor, the capper can do the capping motion based on the signal sent in by the photoelectric sensor. No bottle no capping. The caps are fed by the cap conyeyor normally placed outside the machine.

3. Quality Assurance

Pure Mineral Water Filling Machine

4. Company Info

Company Information:
We locate in ZhangJiaGang, a small city near ShangHai. We have been focusing on the improvement of machinery theory and performance in beverage machinery. we have several certificates such as CE,SGS,etc. we have a batch of decent manufacturing facilities, professional staff, diligent and farsighted leadship. Our machines are widely sold domestically and abroad. We've been majoring in complete beverage production line, including pure/mineral water production line, non-carbonated drinks production line, carbonated drinks production line.

5. Packaging and Shipping

Pure Mineral Water Filling Machine

6. Our Service

1. If you are interested in this pure/mineral water filling machine
a. Contact us for more detailed info, We are happy to answer your questions.
b. We highly recommend you come to our factory to check out the machine personally, You would be picked up and treated with a warm reception.
c. We also suggest you visit our fellow customers' places where are near your place if possible.

2. Customized service
a. We could design and build the machines according to your requirements(material, power, filling method, type of bottle, some certain modules, etc). Meanwhile, we could also give you professional suggestions.
b. We also offer turnkey project, help you design production-line layout and train skilled employees who are able to operate properly.
3. After-sales service
a. We set your shopping experience as our top priority, we will produce as exactly you require and let you get your machine as soon as possible.
b. Our engineers will arrive at your factory right after the machine's arrival. They will help install the machine and teach your employees how to operate properly.
c. We provide one year warranty with free spare components.
