Introduction

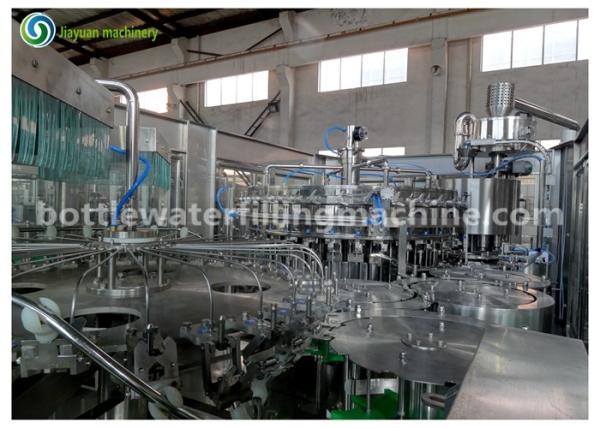

1). This equipment is automatic washing filling capping three in one machine. It is of many advantages,
such as compact structure, perfect control system and easy to be operated. Advanced touch screen and
PLC control system makes man-machine communication true.
2). Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate,
guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing
tank.
3). Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure
filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure
gauge, vacuum pump, etc.
4). Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap
drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external
equipment.
5). Main electrical components are all imported from world famous brands to guarantee excellent
performance of the whole machine.
Characteristic
1. The machien is mainly used in beverage filling operations.
2. The three functions of bottle washing,filling and capping are composed in one body of the machine.
3. The whole machine is automatic.
4. The machine is usde to fill carbonated drink in bottles made fo polyester and plastic.
5. The machine is convenient to adjust the amchine to fill various types of bottles.
6. The filling operation is faster and more stable due to the isobar filling operation of the new type is
adopted.
7. The output and benefit of the machine is higher than the machines of the same specification.
8. It is convenient to operate with higher automation due to every parts of the machine is inspected to run
with photo electrical detector.
9. The machine is idea-preferred equipment for beverage maker.
Technique parameter
| Model | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Capacity :500ml | 4000-6000 | 6000-8000 | 8000-12000 | 12000-16000 |
| Bottle shape: | round or square |
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
| Cap: | Plastic srew cap |
| Filling precision: | ≤±5mm(liquid level) |
| Filling pressure:(Mpa) | ＜0.4 |
| Water pressure of washing bottle:(Mpa) | 0.18-0.25 |
| Water consumption for water bottle(Kg/h) | 2000 | 2500 | 3000 | 3000 |
| Spraying position | 5 | 6 | 12 | 12 |
| Dripping bottle position | 3.0 | 3.5 | 7 | 7 |
| Gas source pressure(Mpa) | 0.4 |
| Gas consumption(m³/min) | 0.4 | 0.4 | 0.5 | 0.5 |
| Total power | 5.03 | 6.57 | 8.07 | 8.07 |
| Overall size:(mm) | 2450*1800*2200 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 |
| Weight: (kg) | 3000 | 4000 | 5000 | 6000 |

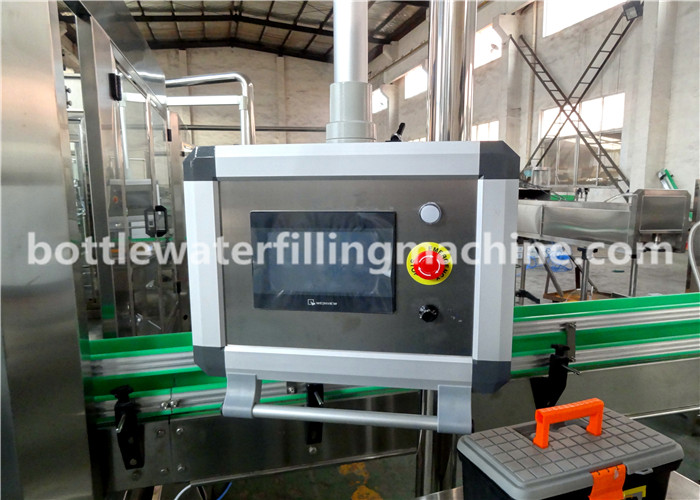

Touch screen

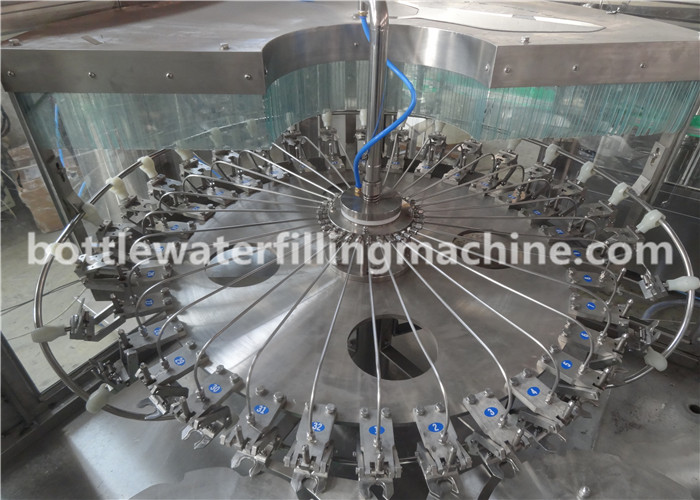

32 head washing part

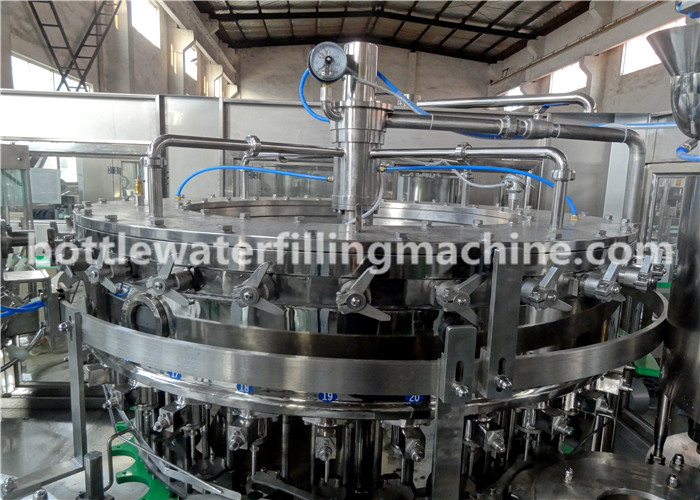

32 heads Filling part
