Advantage of small water bottling machine
The machine is designed more compact, more stable of controlling system, adopts with German FESTO, easy to operate and high automatically.
Using high accuracy and high speed filling valve.
Liquid level is more accurate without water loss, ensuring the quality of filling.
Capping heads use magnetic torque device, ensuring the capping effect and protect the bottle cap.
Using frequency conversion motor of German SEW, can be more convenient to adjust the capacity.
Controlling system has the liquid level control function, lack of cap detection alarm function, automatic alarm for card bottles function etc.
Using advanced touch screen control, can realize human-machine conservation
Parameter
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
Production capacity(600ml)
(B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110=170 330-2250ml |
| Washing pressure(kg/cm 2 ) | 2-3 |
| Motor power(kw) | Main motor
2.2kw | Main motor
2.2kw | Main motor
3kw | Main motor
5.5kw | Main motor
7.5kw | Main motor
11kw | Main motor
15kw | Main motor
19kw |
| Overall dimensions (mm) | 2400×1650
×2500 | 2600×1920
×2550 | 3100×2300
×2800 | 3800×2800
×2900 | 4600×2800
×2900 | 5450×3300
×2900 | 6500×4500
×2900 | 76800×66400
×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |

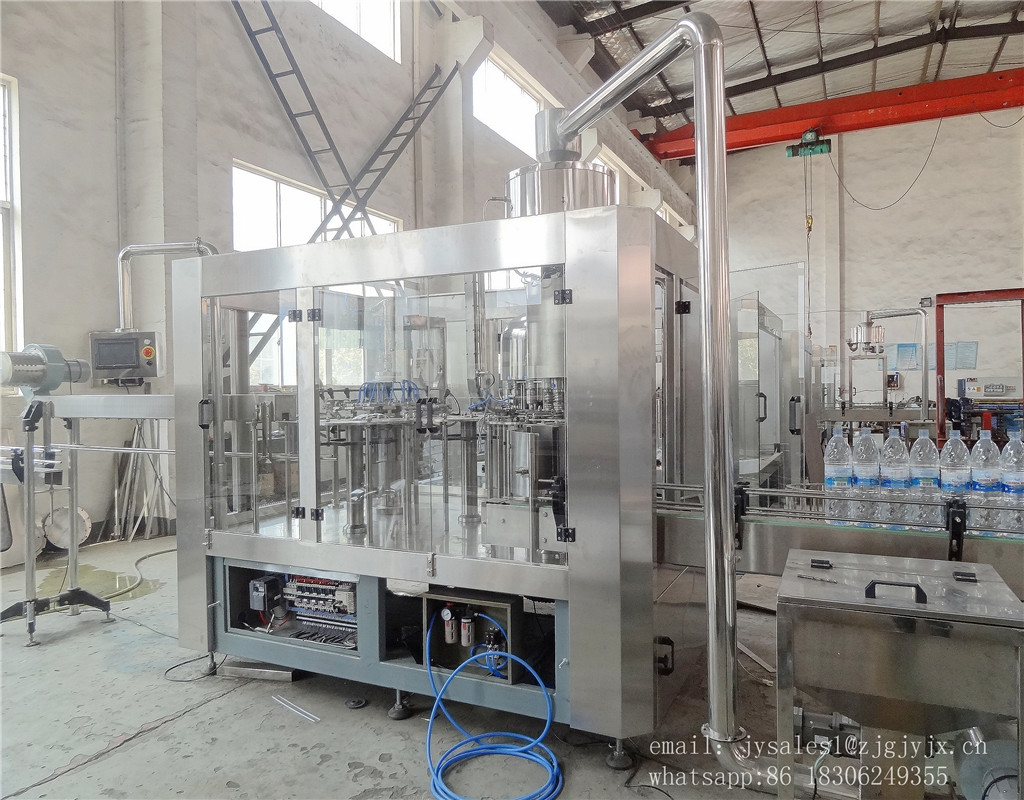

overall look

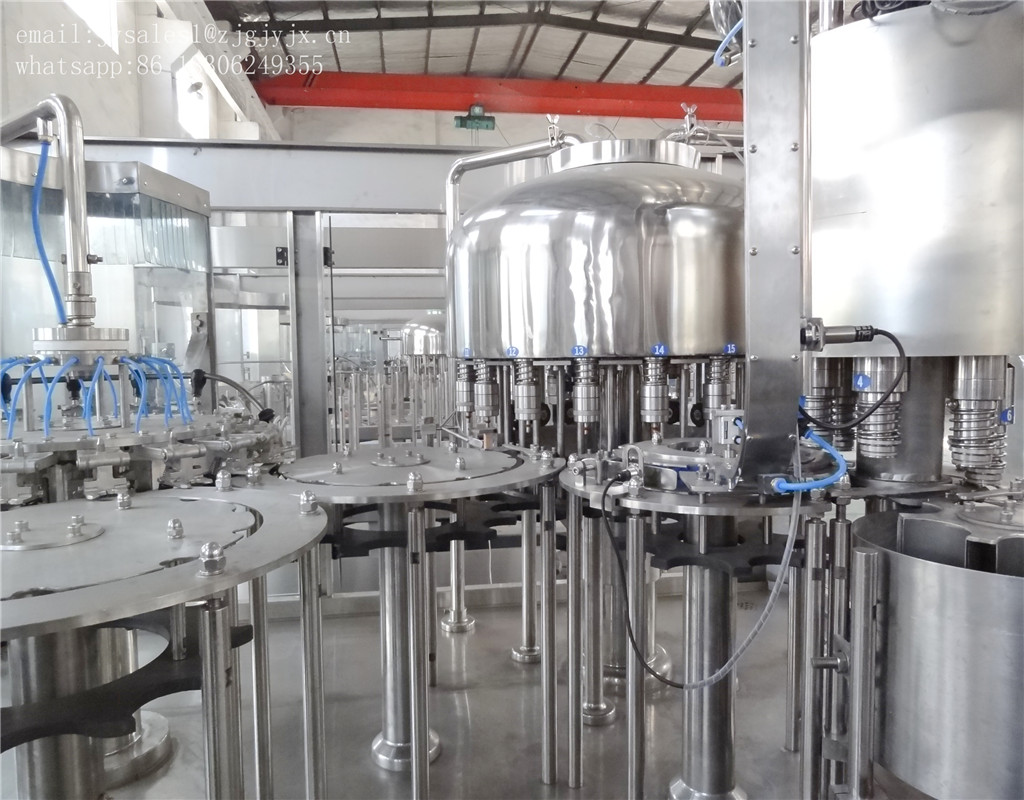

inner look

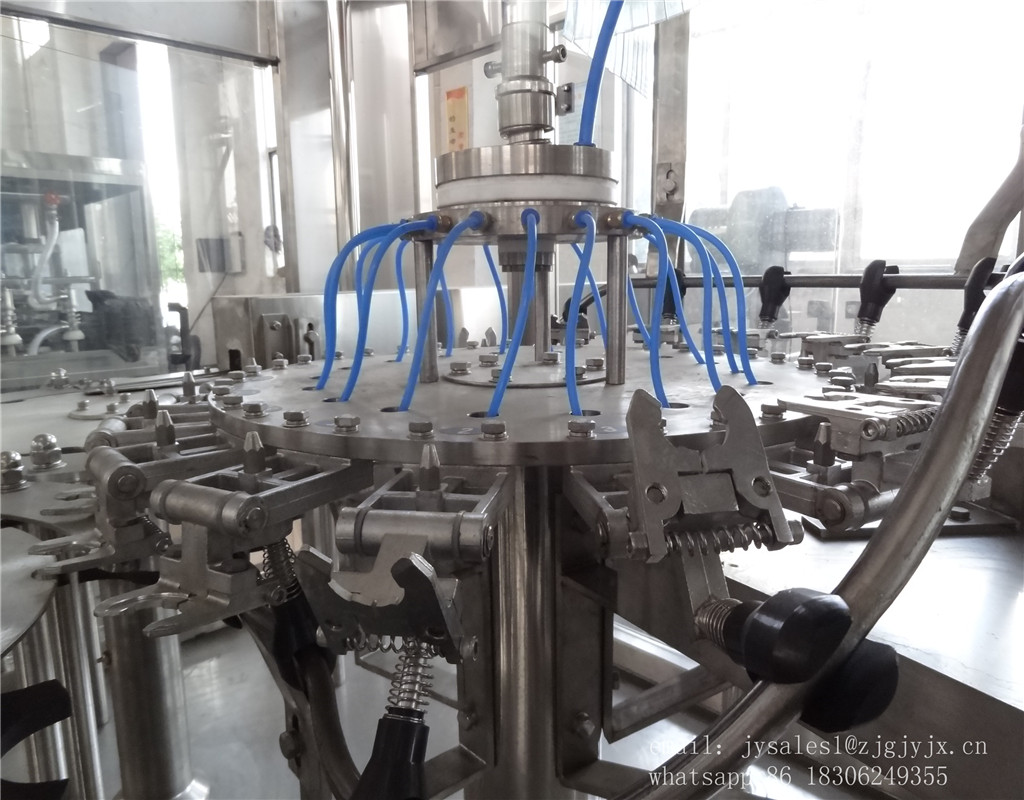

rising
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

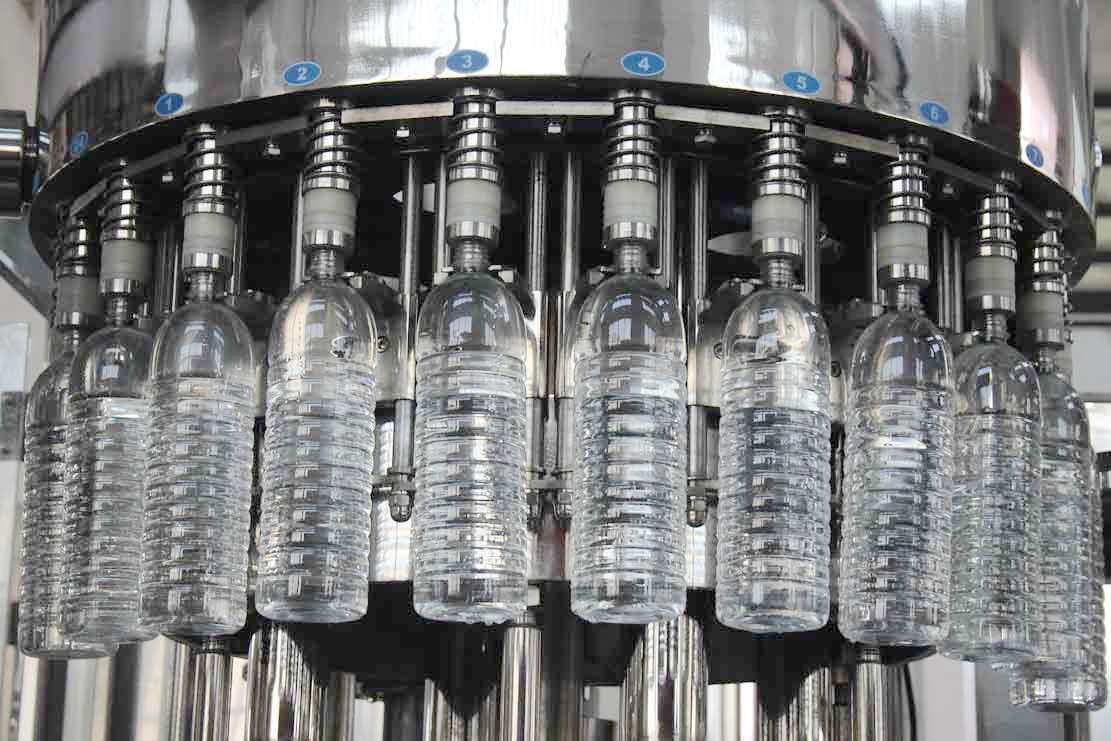

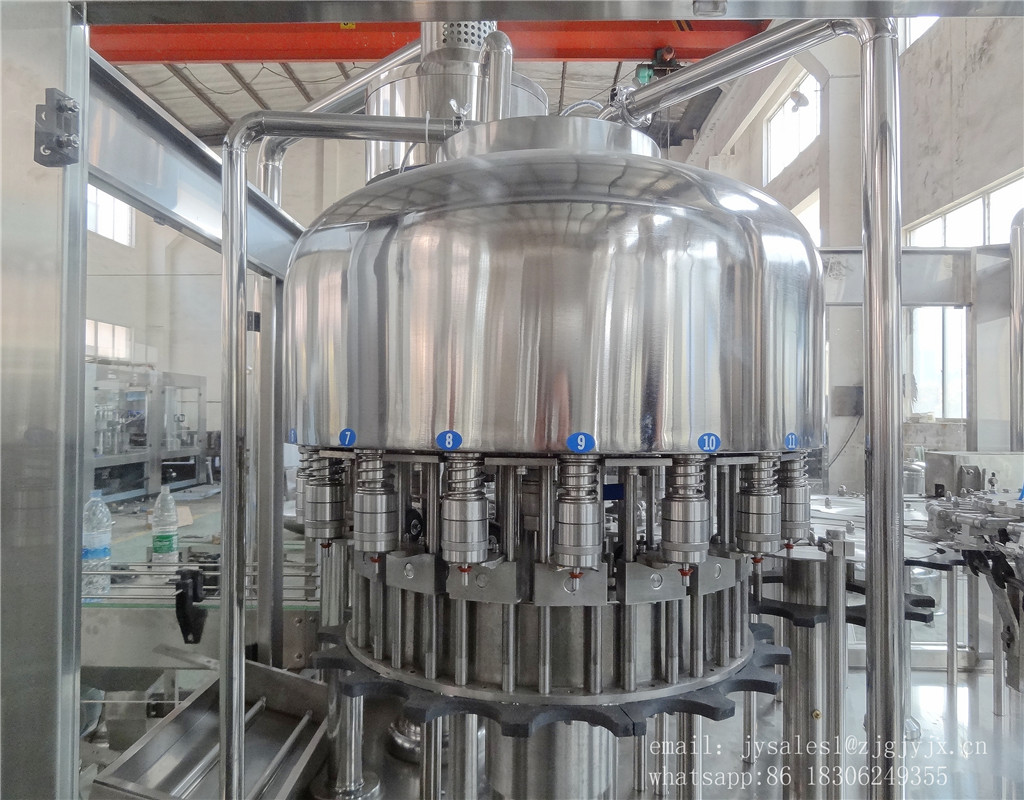

filling
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.

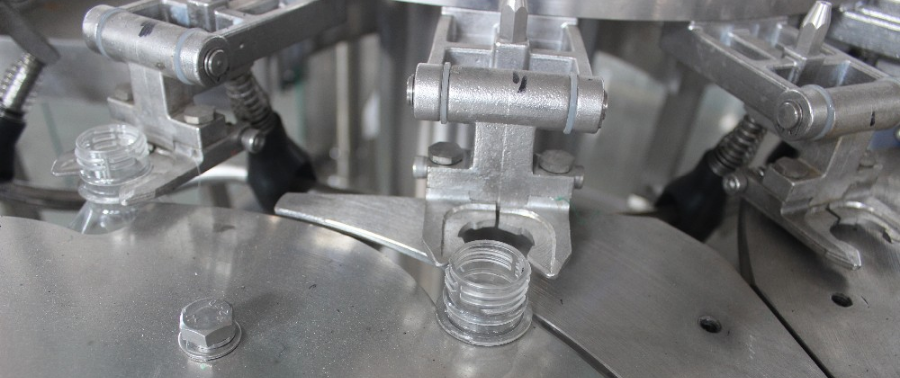

capping
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

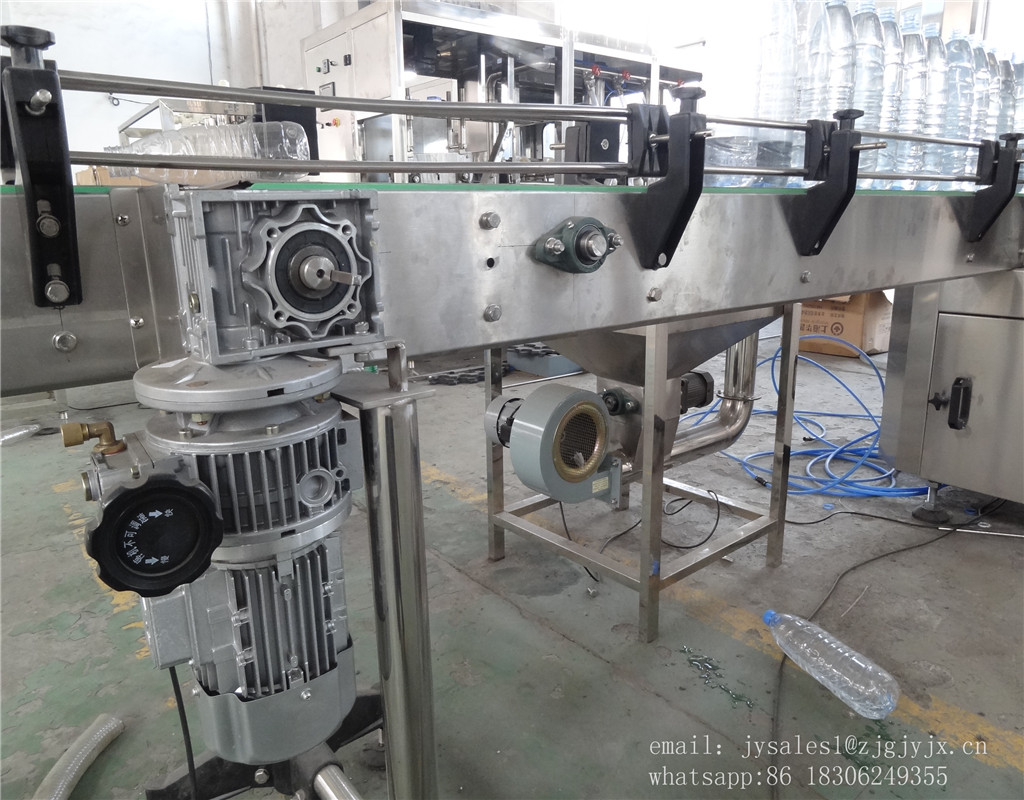

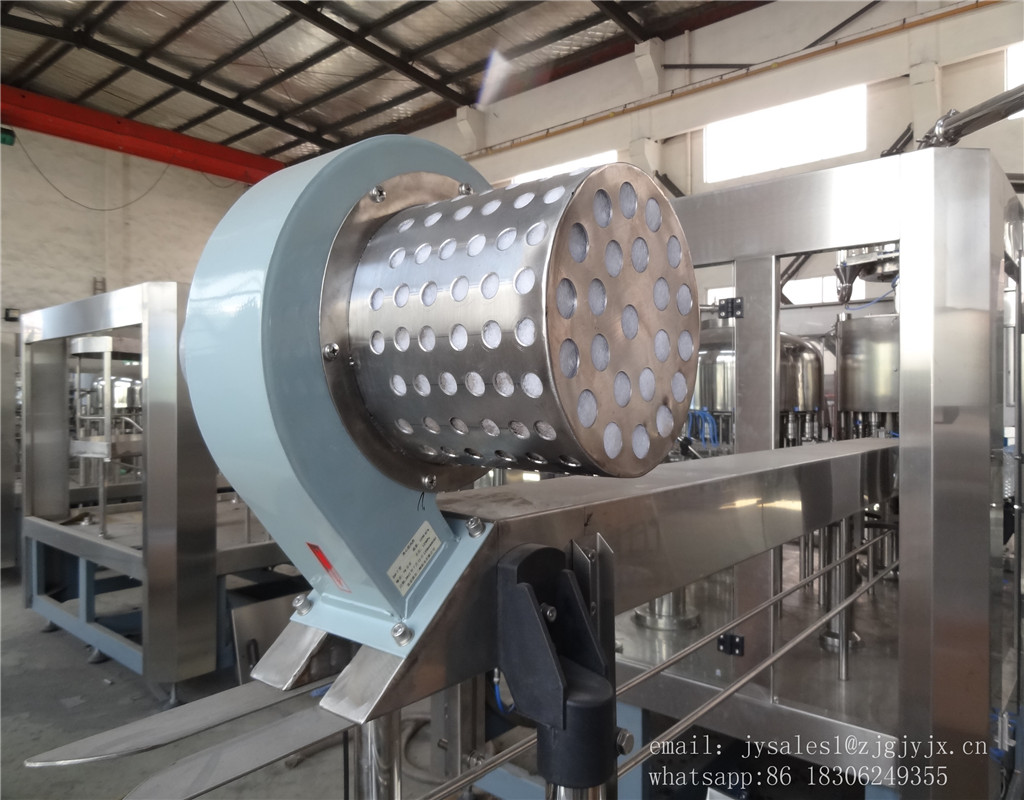

other parts
about our company
We are the real factory in China which produces filling machine and package machine and other auxiliary equipment professionally.
We can provide beverage production line as below:
1. bottling minereal/pure water production line;
2. barrel mineral/ pure water production line
3. bottling carbonated beverage production line (like coca cola);
4. bottling juice production line;
5. canning beverage production line;
6. glass bottle beer production line;
7. milk/tea filling&package line;
8. oil filling&package line;
