3-In-1 Unit Mineral Water Bottle Filling Capping And Labeling Machine

Name: 3In1 Unit Mineral Water Bottle Filling Capping And Labeling Machine
Brand: Jiayuan
Price: 1 USD

Brand Name : Jiayuan

Model Number : CGF8-8-3

Certification : CE SGS ISO

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set/Sets

Price : US $15,000 - 1,000,000 / Set

Supply Ability : 15 Set/Sets per Month

Delivery Time : 30 Working Days

Packaging Details : Wooden Box

Machine Type : Filling machine

Machine material : SS304

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V/50HZ

Bottle type : Pet bottle/plastic bottle

Warranty : One year for free

Capacity : 3000bottles per hour(500ml)

Contact Now

3-In-1 Unit Mineral Water Bottle Filling Capping And Labeling Machine

Quick information

1. Capacity:3000BPH(based on 500ml)

2. Bottle size:200ml-1000ml

3. Washing filling capping 3-in-1 unit

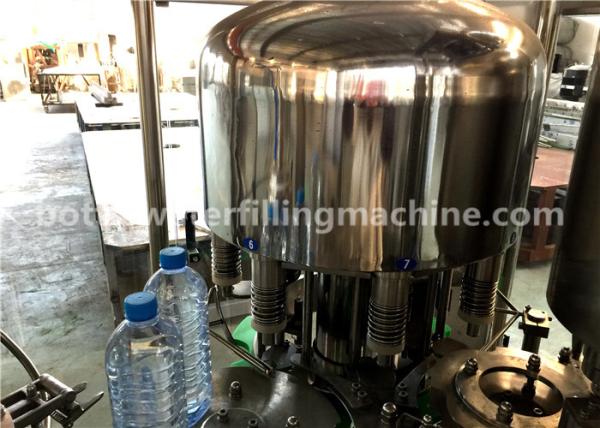

Instruction of the 3-in-1 Water Filling Monobloc

Automatic Drinking Water Filling Machine/Bottle Plant contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water into polyester bottles and PET bottles. The main machine adopts advanced PLC control technology.The key electric elements adopt international famous products.

Advantage

1. Automatic 3 in 1 Water Bottling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.

2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.

3. Its usual production capacity is in 3000bph, 0.2-1L PET bottle is available.

4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.

5. Filling accuracy is more or less than 1%.

6. We can provide water treatment machine, bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc.

Technical parameter

Model	CGF8-8-3
Capacity	3000BPH for 0.5L bottles
Washing heads quantity	8 pieces
Filling heads quantity	8 pieces
Capping heads quantity	3 pieces
Air supply pressure	0.6Mpa
Power	3kw
Weight	1500kg
Dimension(LWH)	160015002200mm

Machine frame

The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
PLC electrical control system controls the fully automatic operation of the monobloc.

Cap loader:Convey caps into the capping machine by blowing

3-In-1 Unit Mineral Water Bottle Filling Capping And Labeling Machine

Air Conveyor:convey the PET bottle into the filling machine

3-In-1 Unit Mineral Water Bottle Filling Capping And Labeling Machine

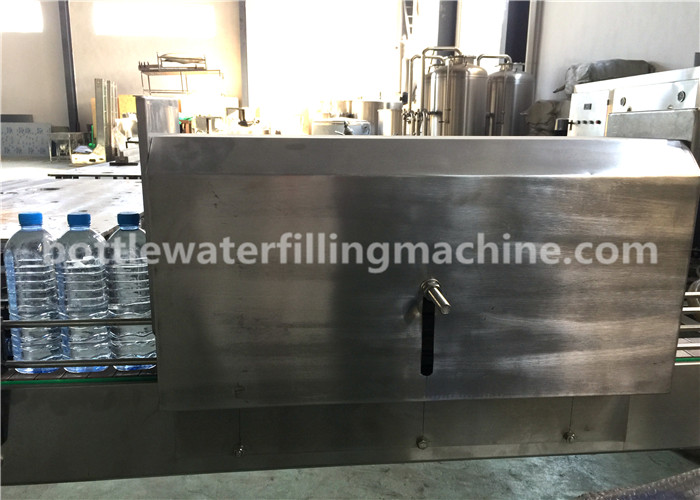

Bottle dryer:remove the water outside the bottle after filling 3-In-1 Unit Mineral Water Bottle Filling Capping And Labeling Machine

COMPLETE WATER FILLING PRODUCTION LINE INCLUDES:

- Water treatment

- Air conveyor

- Rinsing-filling-capping 3-in-1 monoblock

- Light checker

- Cap loader

- Conveyor

- Air dryer

- Labeling machine

- Ink jet printer

- Shrink packing machine
